Product

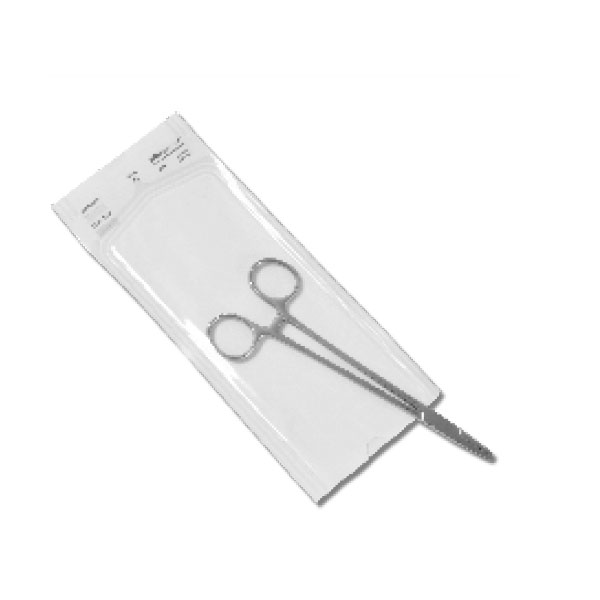

Sterilization Pouch


Sterilization pouches as a packaging solution for sterilization applications, ensure the protection of the medical device against contamination with bacteria and chemicals from the time of sterilization until use of the sterile medical device.

Wide range of standard sizes allows optimum choice of a correct-sized pack for each item.
PMSSteripack sterilization pouches are constructed from transparent PET/PP multi-layers copolymer film and medical kraft paper.

Process indicators for steam and ethylene oxide sterilization are applied on the paper surface of the reel and help to differentiate between processed and unprocessed packages. All process indicators are water based and non-toxic inks and meet or exceed the requirements of ISO 11140-1 standard
and provide accurate and clear color change after sterilization process.

Wide range of standard sizes allows optimum choice of a correct-sized pack for each item and for double packing purposes and as a requirement of EN ISO 11607 all equipment, machines and  processes used for PMSSteripack
sterilization pouch manufacturing, process validation has been conducted.

Sterilization-Pouch
  • Superior barrier with 60gsm or 70gsm medikal grade paper conforming EN 868-3
  • Transparent, reinforced multilayer co-polymer PET/PP film
  • ISO 11140-1 certified water based, non-toxic and accurate process indicator
  • Three independent seal lines
  • Excellent gas permeability and microbial barrier properties
  • Can be easily sealed with all sealing machines
  • Manufactured under validated production process.

PMSSteripack branded standard sizes for flat and gusseted reels are listed below.

Catalogue No Description Size
GP7525 Sterilization Gusseted Pouch 75mm x 250mm
GP1030 Sterilization Gusseted Pouch 100mm x 300mm
GP1039 Sterilization Gusseted Pouch 100mm x 390mm
GP1045 Sterilization Gusseted Pouch 100mm x 450mm
GP1530 Sterilization Gusseted Pouch 150mm x 300mm
GP1539 Sterilization Gusseted Pouch 150mm x 390mm
GP2039 Sterilization Gusseted Pouch 200mm x 390mm
GP2045 Sterilization Gusseted Pouch 200mm x 450mm
GP2050 Sterilization Gusseted Pouch 200mm x 500mm
GP2545 Sterilization Gusseted Pouch 250mm x 450mm
GP2550 Sterilization Gusseted Pouch 250mm x 500mm
GP3060 Sterilization Gusseted Pouch 300mm x 600mm
GP4060 Sterilization Gusseted Pouch 400mm x 600mm

PMSSteripack branded standard sizes for flat and gusseted pouches are listed below.

Catalogue No Description Size
FP0525 Sterilization Flat Pouch 50mm x 250mm
FP7520 Sterilization Flat Pouch 75mm x 200mm
FP7525 Sterilization Flat Pouch 75mm x 250mm
FP7530 Sterilization Flat Pouch 75mm x 300mm
FP7540 Sterilization Flat Pouch 75mm x 400mm
FP1020 Sterilization Flat Pouch 100mm x 200mm
FP1025 Sterilization Flat Pouch 100mm x 250mm
FP1030 Sterilization Flat Pouch 100mm x 300mm
FP1035 Sterilization Flat Pouch 100mm x 350mm
FP1040 Sterilization Flat Pouch 100mm x 400mm
FP1050 Sterilization Flat Pouch 100mm x 500mm
FP1060 Sterilization Flat Pouch 120mm x 300mm
FP1230 Sterilization Flat Pouch 150mm x 200mm
FP1520 Sterilization Flat Pouch 150mm x 250mm
FP1525 Sterilization Flat Pouch 150mm x 300mm
FP1530 Sterilization Flat Pouch 150mm x 350mm
FP1535 Sterilization Flat Pouch 150mm x 400mm
FP1540 Sterilization Flat Pouch 150mm x 500mm
FP1550 Sterilization Flat Pouch 200mm x 400mm
FP2040 Sterilization Flat Pouch 200mm x 600mm
FP2060 Sterilization Flat Pouch 210mm x 280mm
FP2128 Sterilization Flat Pouch 210mm x 350mm
FP2135 Sterilization Flat Pouch 210mm x 420mm
FP2142 Sterilization Flat Pouch 250mm x 350mm
FP2535 Sterilization Flat Pouch 250mm x 400mm
FP2540 Sterilization Flat Pouch 250mm x 450mm
FP2545 Sterilization Flat Pouch 250mm x 500mm
FP2550 Sterilization Flat Pouch 280mm x 350mm
FP2835 Sterilization Flat Pouch 280mm x 400mm
FP2840 Sterilization Flat Pouch 280mm x 500mm
FP2850 Sterilization Flat Pouch 300mm x 400m
FP3040 Sterilization Flat Pouch 300mm x 450m
FP3045 Sterilization Flat Pouch 300mm x 500m
FP3050 Sterilization Flat Pouch 300mm x 600m
FP3060 Sterilization Flat Pouch 320mm x 500m
FP3250 Sterilization Flat Pouch 350mm x 500m
FP3550 Sterilization Flat Pouch 100mm x 100m
FP3660 Sterilization Flat Pouch 350mm x 500m
FP4060 Sterilization Flat Pouch 360mm x 600m
FP4250 Sterilization Flat Pouch 400mm x 600m
FP4255 Sterilization Flat Pouch 420mm x 550m
FP4260 Sterilization Flat Pouch 420mm x 600m
