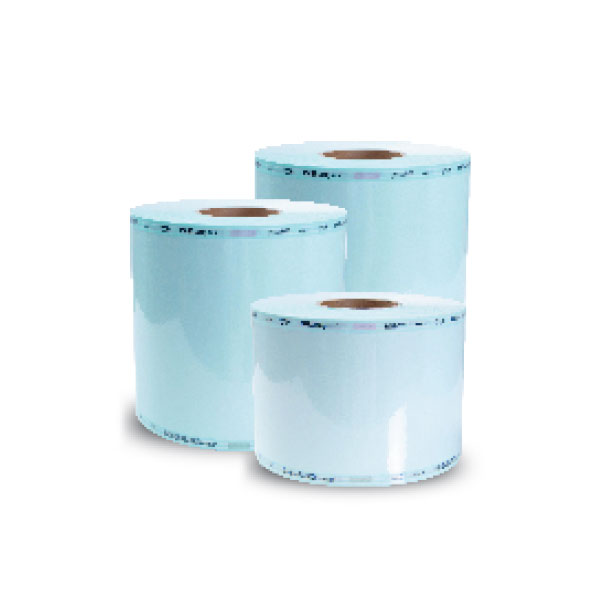

Sterilization Reel

PMSSteripack heat-sealable sterilization reels are constructed from transparent PET/PP multi-layers copolymer film and medical grade paper. Process indicators for steam and ethylene oxide sterilization are applied on the paper surface of the reel and help to differentiate between processed and unprocessed packages.

All process indicators are water based and non-toxic inks and meet or exceed the requirements of ISO 11140-1 standard and provide accurate and clear color change after sterilization process.

Wide range of standard sizes allows optimum choice of a correct-sized pack for each item and for double packing purposes and as a requirement of EN ISO 11607 all equipments, machines and processes used for PMSSteripack sterilization reel manufacturing, process validation has been conducted.

  • Superior barrier with 60gsm or 70gsm medical gradepaper
  • Transparent, reinforced multilayer co-polymer film
  • ISO 11140-1 certified water based, non-toxic and accurate process indicator
  • Three independent seal lines
  • Can be easily sealed with all sealing machine

PMSSteripack branded standard sizes for flat and gusseted reels are listed below.

Flat Sterilization Reels

Catalogue No Description Size
FL05200 Sterilization Flat Reel 50mm x 200m
FL75200 Sterilization Flat Reel 75mm x 200m
FL10200 Sterilization Flat Reel 100mm x 200m
FL15200 Sterilization Flat Reel 150mm x 200m
FL20200 Sterilization Flat Reel 200mm x 200m
FL25200 Sterilization Flat Reel 250mm x 200m
FL30200 Sterilization Flat Reel 300mm x 200m
FL35200 Sterilization Flat Reel 350mm x 200m
FL40200 Sterilization Flat Reel 400mm x 200m
FL50200 Sterilization Flat Reel 500mm x 200m

Gusseted Sterilization Reels

Catalogue No Description Size
GS75100 Sterilization Gusseted Reel 75mm x 100m
GS10100 Sterilization Gusseted Reel 100mm x 100m
GS15100 Sterilization Gusseted Reel 150mm x 100m
GS20100 Sterilization Gusseted Reel 200mm x 100m
GS25100 Sterilization Gusseted Reel 250mm x 100m
GS30100 Sterilization Gusseted Reel 300mm x 100m
GS35100 Sterilization Gusseted Reel 350mm x 100m
GS40100 Sterilization Gusseted Reel 400mm x 100m
